SOUND ISOLATION DESIGN · SPYS DESIGNS

What a Sound Isolation Design Fee Actually Buys You

A few months ago I was on a live video inspection, walking a client's build room by room before the walls closed up. In the wall, I caught something small that almost cost him a finished room he couldn't actually use.

I want to walk through what that was, because it explains what a sound isolation design fee actually pays for better than any page of specifications could.

The Catch

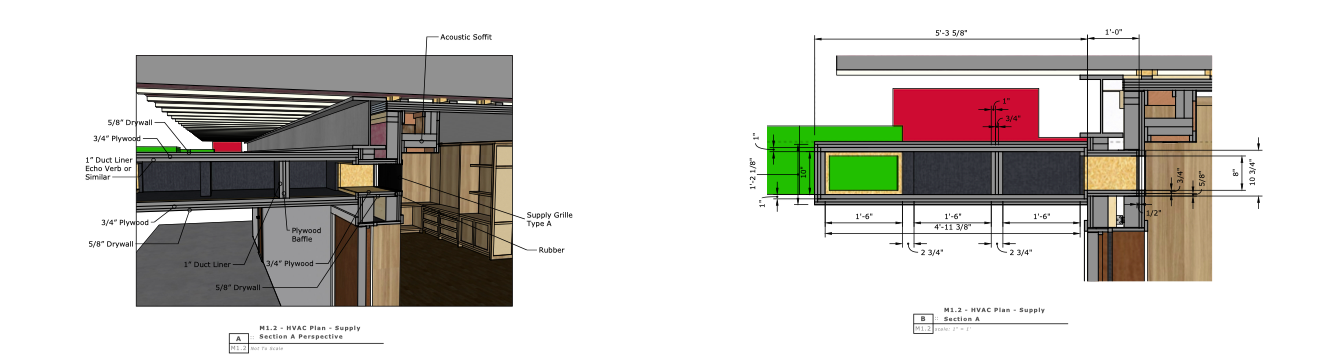

The assembly in question has two parts that get confused constantly, even by experienced crews: the chimney and the baffle box. The chimney is a sealed, decoupled duct run whose only job is to carry air across an isolated wall without carrying sound with it. It needs to stay clear and airtight. The baffle box is a separate component downstream, and it is the part actually designed to absorb sound, which is why it is lined with acoustic duct liner on the inside.

On this build, the duct liner had been installed inside the chimney where it was not supposed to be. It looked like a small, reasonable choice in the moment. Mechanically, it wasn't. Liner inside the chimney constricts the airflow path, which increases air velocity and turns the HVAC system itself into a noise source.

If that had gone unnoticed, the room would have passed every visual inspection, looked finished, and still failed the one test that actually matters. The client would have moved in, turned on the HVAC, and heard the exact whoosh the entire design was built to eliminate.

Plans Are the Floor, Not the Ceiling

Most people evaluating a sound isolation designer are evaluating a set of construction plans. That is a reasonable place to start, and it is also the lowest bar in the entire process. Any designer can hand you a drawing set. Having reviewed a fair number of other firms' plans over the years, I can say plainly that a plan set alone is not much to be confident about.

The plans are the starting point. What separates a design firm from a drawing service is everything that happens after the plans are issued, while the room is actually being built.

The Communication Layer Nobody Talks About

A sound isolated room only works if every trade touching it is working from the same understanding of the assembly, not just the same sheet of paper. That means active coordination between the electrician, the general contractor and subs, the architect, the structural engineer, and the HVAC technician, at every phase where their work intersects the isolation assembly.

The HVAC example above is exactly this kind of intersection. The mechanical trade has its own scope, its own instincts, and its own shortcuts that make sense on a normal job. For an isolated room, some of those instincts are wrong, and someone has to be watching for exactly where that happens.

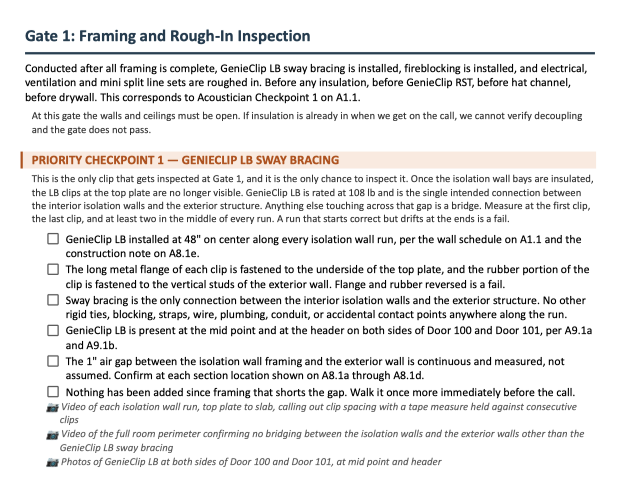

How We Track It

This part of the system is newer, and I want to be honest about where it came from rather than present it as something we always had figured out. It came out of necessity, project by project, and it was sharpened considerably by a client who happened to be deeply experienced in project management on his own side of a build. Watching how he tracked his own project shaped the checklist system we now run on every job.

We don't claim to know the single best way to do this. What we do know is that the more projects we run through a documented, gated inspection process, the more issues we catch before they become part of a wall that has already been closed up.

It is always cheaper to ask than to open a wall.

What This Means If You're Evaluating a Designer

If you are comparing sound isolation designers right now, the plan set is not the thing to judge first. Ask who is coordinating between your trades once construction starts. Ask whether anyone is walking the site, on video or in person, at defined points before things get covered up. Ask what happens when a mistake is caught. A firm with a real answer to all three has a real process. A firm with only a drawing set has a starting point.

Sound Isolation Site Assessment

If you are planning a room that has to perform at this level, start with a site assessment. We will tell you what your project actually requires before you commit to a design fee.
