The HVAC Coordination Gap That Quietly Ruins ADU Studio Builds
When an architect designs the roof, a contractor quotes the equipment, and no one is responsible for the acoustic result, the room fails in the field, where it is most expensive to fix. Here is what it looks like to close that gap before framing starts.
Right now we have two ADU studio projects running at the same time. Different clients, different states, different architects. Both of them hit the same wall this week, and it is the same wall almost every high-performance ADU build runs into eventually.
The architect designed a roof system. The HVAC contractor had equipment to quote. And no one in the room had worked out whether any of it would function together once you add the one requirement that changes everything: this room has to be acoustically silent.
That intersection, where structure, mechanical systems, and acoustic performance all have to resolve at once, is nobody’s job by default. It becomes a problem only when someone is specifically hired to own it. What follows is an account of what owning it looked like on one of those projects.
The gap nobody owns
An ADU at this scope requires an architect. The architect is responsible for the structure and the way the building looks. They draw a roof system that carries load, meets code, and fits the aesthetic the client signed off on.
The HVAC contractor comes in later and quotes equipment they know how to install. In a standard attic, that is a routine job. They size the system, run the ducting, and move on.
Neither of those professionals is designing for acoustic performance. Neither is thinking about whether a silent ventilation system, with its baffle boxes and oversized ducting, will physically fit inside a roof structure that has already been drawn. The client assumes someone is coordinating all of this. In most builds, no one is.
That is where the room quietly fails. The contractor installs what fits the space rather than what performs, the client never learns what they lost, and the room ends up louder than it should have been for the rest of its life and regrets not having done it “right” the first time.
The constraint stack
On this project, the architect had specified a roof framed with trusses. Trusses are cheaper and faster to frame, and for most builds they are the obvious choice.
The problem is that trusses fill the attic with structural webbing. Once we mapped the baffle box geometry against that layout, there was no viable path for a silent HVAC system. The equipment simply had nowhere to live.
So we made the call to move away from trusses and to traditional dimensional lumber framing. That decision came with a responsibility. Once you remove the engineered system the architect specified, you now own the structural recommendation that replaces it. We ran estimated structural calculations and proposed a specific framing approach: 2x8 rafters with 2x6 collar ties and a continuous 2x10 ridge beam, all at 16 inches on center. We also bumped the roof pitch up slightly, which improved the structural numbers and opened additional clearance in the attic.
Then came the part that is genuinely interesting, and the part no architect or mechanical engineer would have caught.
Our standard baffle box internal duct size for an ERV and dehumidifier system is twelve inches by twelve inches. We use that size because we know the air speed math works at that volume, and air speed is what keeps the ventilation silent. On this project, even after removing the trusses, a 12x12 box would not fit inside the available structure.
The intuitive solution would be to shrink the box. But shrinking it changes the internal volume, which changes the air speed, which compromises the acoustic performance. So instead of shrinking it, we re-proportioned it. We tested a series of baffle box geometries that all held the same internal volume as a 12x12, and landed on a box with a lower profile and a much wider footprint. Same cubic volume. Same air speed. Same acoustic result. It just fit inside the roof the architect had drawn.
That is a mechanical engineering decision disguised as a geometry problem, and it is exactly the kind of thing that falls through the cracks when no one owns the intersection.
What the architect said
When the framing recommendation was ready, we sent it to the architect of record for review. This is not a normal deliverable from a sound isolation firm. A consultant does not typically hand an architect a structural framing proposal and ask them to confirm it.

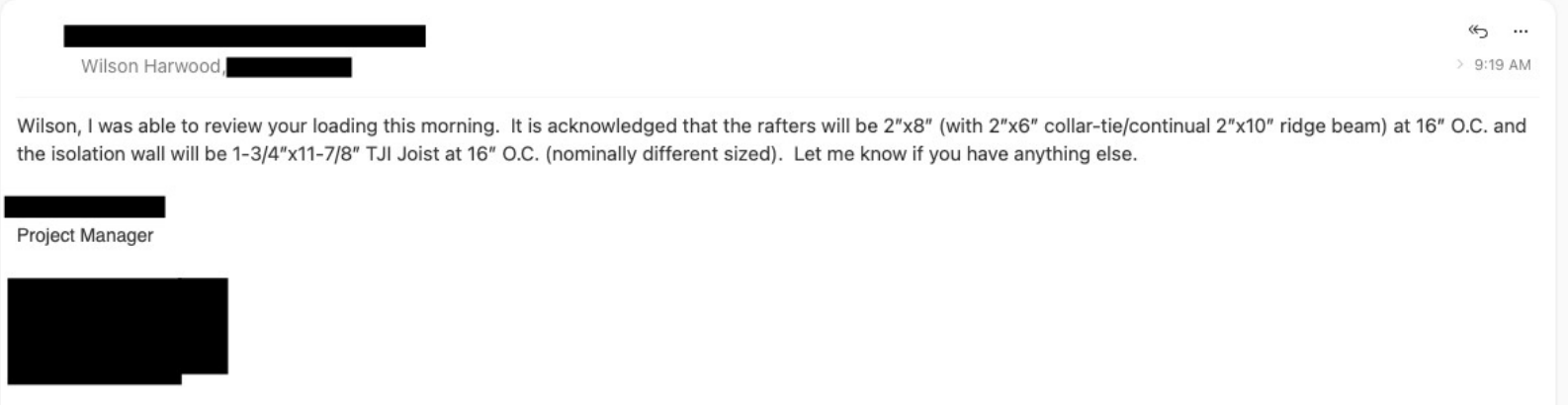

The response came back the same morning. Four minutes between the two emails.
|
|

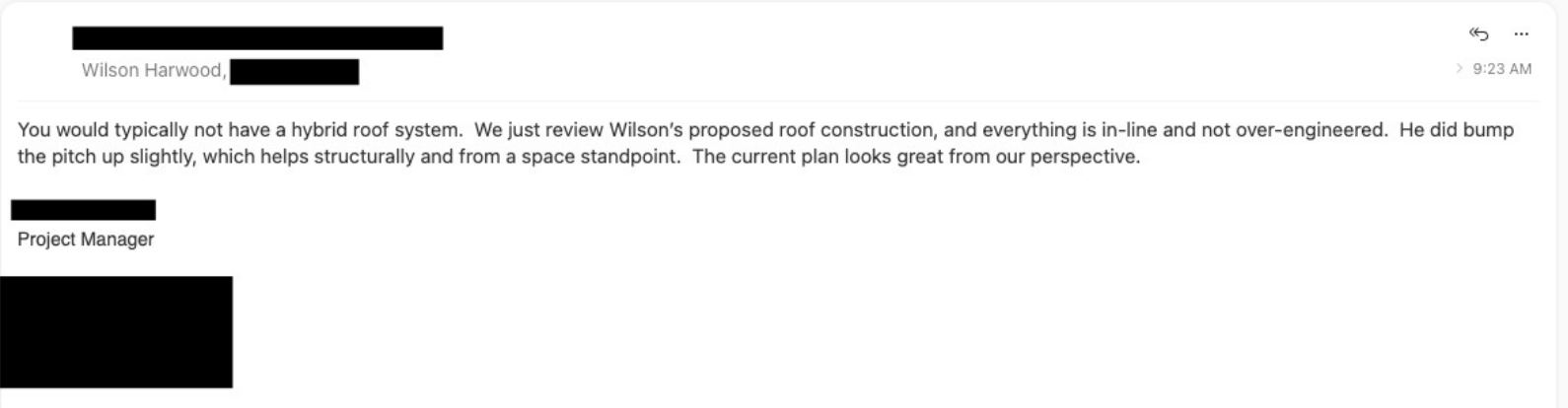

The phrase that matters is in the second email: the plan is in-line and not over-engineered. That is professional shorthand from one design professional to another. It means we understood the structural situation, proposed exactly what it required, and did not pad it with unnecessary material. Coming from the architect of record, it is the kind of validation a firm cannot give itself.

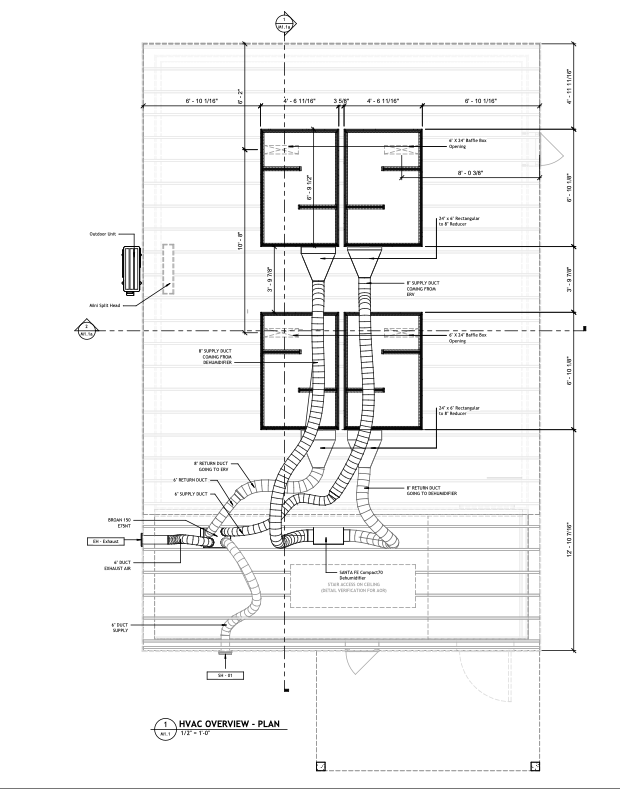

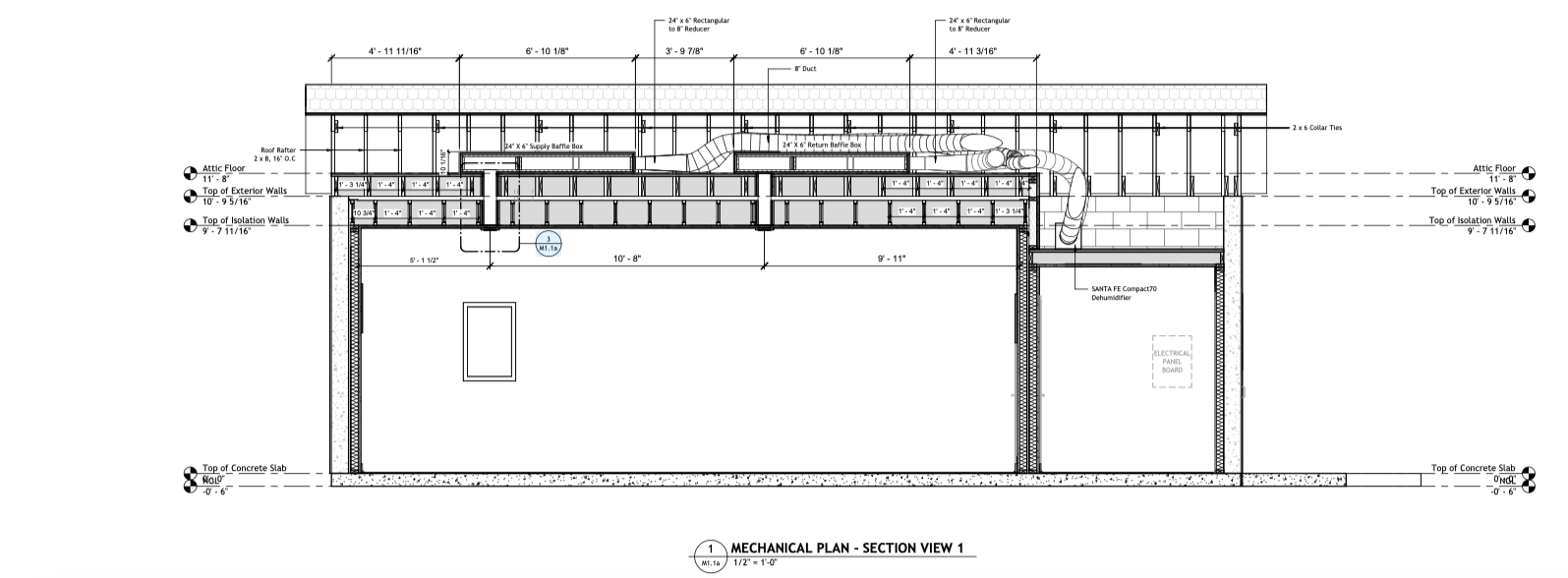

The drawing above is what existed before a single framing member went up. Baffle box openings, duct routing and sizing, ERV and dehumidifier locations, supply and return runs. All of it was resolved on paper, in coordination with the architect, while changes still cost nothing.
The pattern
We have two of these running right now, same problem, same week. That should tell you this is not a rare edge case. Any ADU with an attic HVAC requirement and a real performance specification is going to create this coordination problem.
The only question is when it gets solved. In the design phase, where a re-proportioned baffle box is a five-minute decision on a drawing. Or in the field, where the framing crew makes the call for you, and the acoustic performance of the room pays for it.
|
